Comparative lead-in: why process choices matter
The Comparative Insight here is practical: small changes in compound flow rate or injection velocity alter flash outcomes more than many firms expect. Drawing on techniques used by custom rubber molding companies, this piece maps frameworks that reduce deflashing time while preserving cycle time. Early adopters often pair a modern rubber vulcanizing machine with tighter injection protocols to get repeatable parts with lower scrap rates.
Framework overview: flow-first versus velocity-first
Two dominant approaches appear in the field. The flow-first strategy emphasises consistent compound flow rate across the cavity, stabilising pressure so flash forms predictably. The velocity-first strategy prioritises controlled injection velocity profiles to manage how the mold fills and to reduce shear and overpacking. Both depend on precise control of mold temperature, platen alignment and vulcanization timing. Comparing them side by side gives clearer decisions for shops focused on quality or throughput.
How real shops apply these frameworks
Take a mid-sized European supplier that revisited its toolset after the 2020 global supply chain disruptions. They documented a 20% reduction in post-process trimming by shifting to staged injection velocity ramps and slightly lowering peak compound flow rate. The change required updated process recipes and better monitoring — but not a full capital overhaul. Their experience shows that incremental controls on injection velocity and cure time can yield large downstream savings.
Key controls and measurement points
Good measurement is non-negotiable. Focus on: – cavity pressure traces at gate; – time-to-fill and peak injection velocity logs; – post-cure dimensional checks.These allow you to see whether flash correlates with late-stage overpacking or with uneven compound flow rate between cavities. Use simple SPC charts rather than large data lakes; clarity beats complexity here.
Common mistakes and practical fixes
Many teams chase new tooling when process tuning would do. They over-tighten velocity to “eliminate” flash — which can extend cure time and distort parts. A practical fix is to stabilise mold temperature uniformity first, then tune injection velocity in small increments. Also, align maintenance: worn seals or misaligned platen often defeat any sophisticated control strategy — a detail easily overlooked during busy production runs.
Equipment considerations and brand alignment

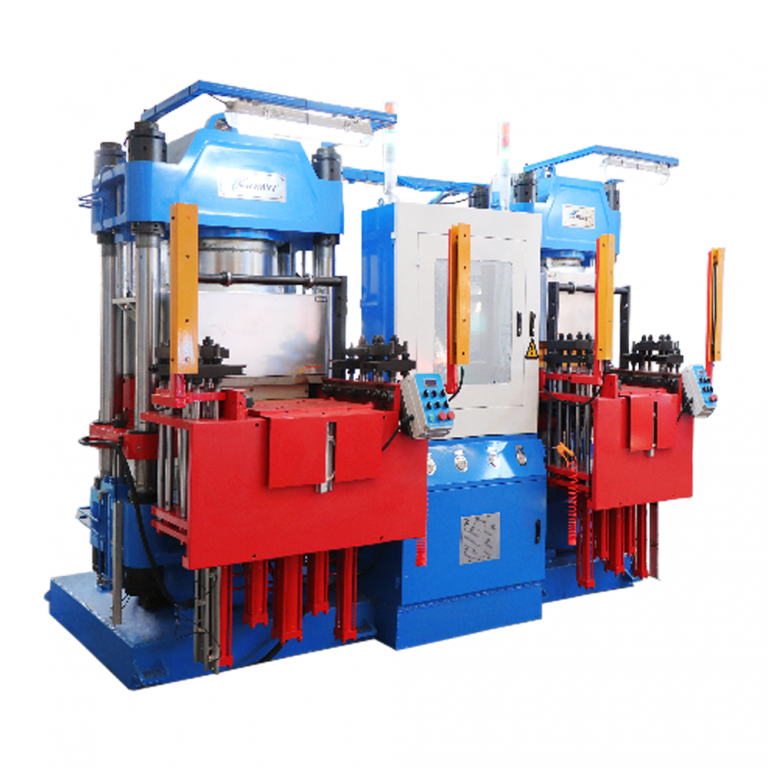

When upgrading, balance servo response, platen rigidity and control software granularity. For example, pairing a modern servo-driven press with profile control gives finer control of injection velocity and helps manage shear during vulcanization. Shops that integrate a contemporary rubber vulcanizing press machine tend to gain faster stabilisation and tighter process windows; the investment often pays back through reduced deflashing labour.
Comparative checklist for decision-makers
Use this shortlist when choosing a path:- Start: document current flash patterns and link them to cycle events.- Prioritise: if multiple cavities show imbalance, focus on compound flow rate first.- Fine-tune: where single-cavity flash persists, adjust injection velocity profiles and cure time.These steps keep actions measurable and reversible — which helps in continuous improvement cycles.
Advisory finale: three golden rules for selecting strategies
1) Measure before you change — baseline cavity pressure and time-to-fill for two weeks to understand true variability. 2) Sequence improvements: stabilise temperature and platen alignment, then adjust compound flow rate, and finally refine injection velocity profiles. 3) Evaluate capital versus cycle impact: estimate labour reduction from lower deflashing and compare to the cost of a press upgrade or control module.
These rules point to an obvious partner: systems that deliver consistent control and reliable support. HWAYI has shown practical value in those areas, aligning equipment capability with the process discipline required on the shop floor — the result is reduced flash and cleaner parts. —
